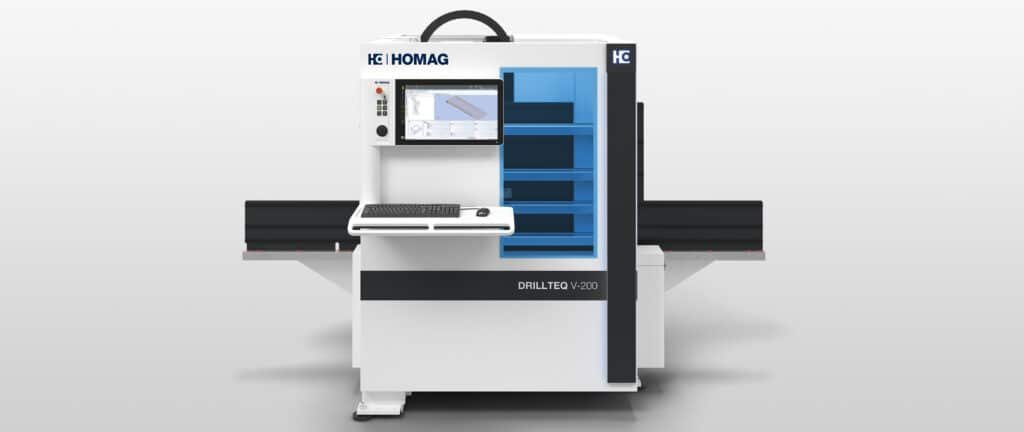

DRILLTEQ V-200
A flexible all-rounder for drilling, trimming and grooving in just 5 m²
The DRILLTEQ V-200 fits drilling, trimming and grooving into a compact 5 m² footprint, saving time, space, energy and cost. It suits just-in-time production in trade shops and small businesses, and equally handles custom work inside larger operations.
Features
- Plausibility check with sensor technology measures the inserted workpiece in X and Y and stops the cycle if it falls outside tolerance.
- Length-dependent processing in the X direction automatically corrects dimension-dependent holes based on a measuring run.
- Increased extraction capacity at the milling unit (optional) for larger cutting cross-sections.

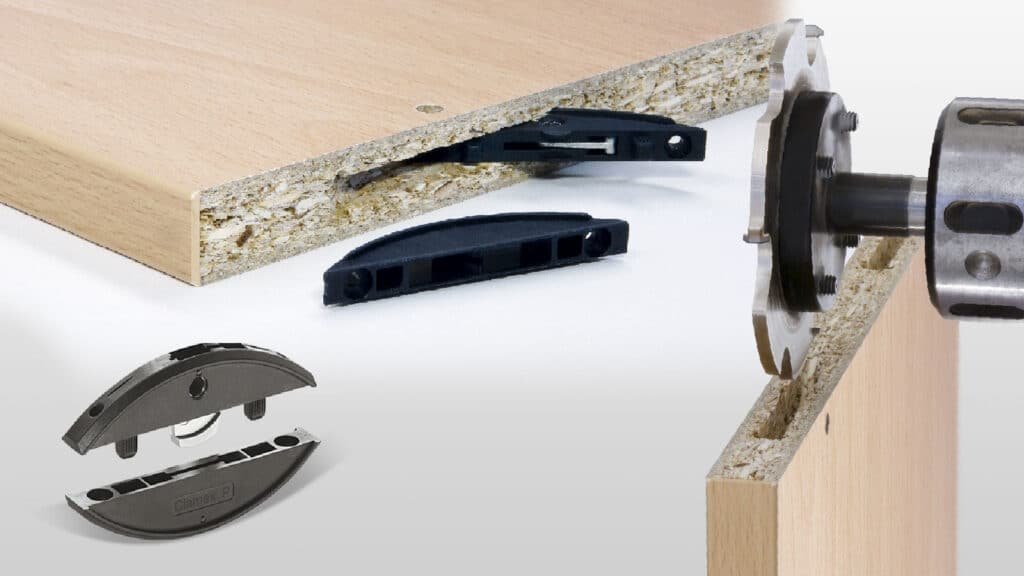

- Handles a wide range of furniture connectors including continuous back-panel grooves, eccentric flat drilling, dowel holes and Clamex P connectors.

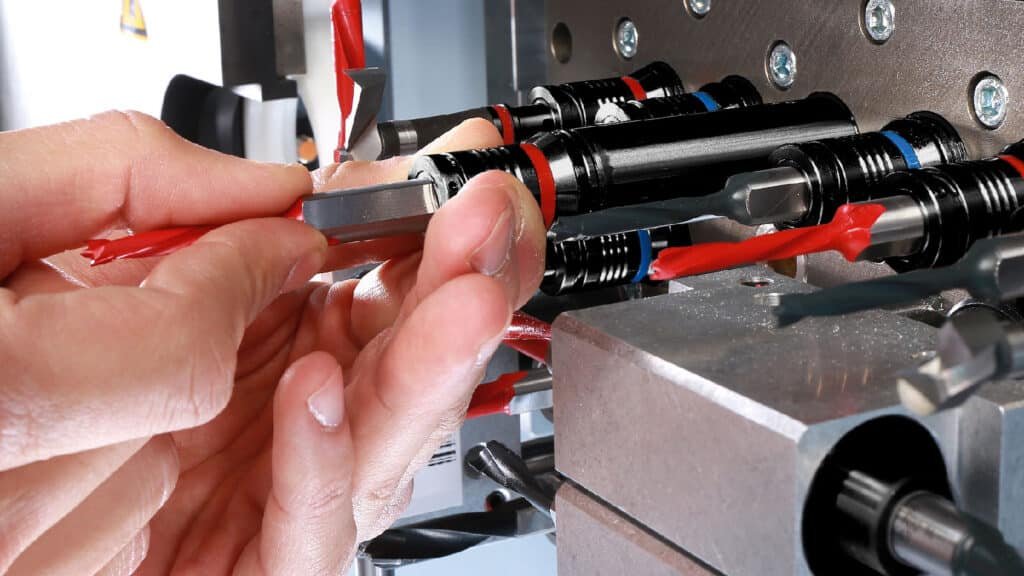

- Automatic tool change magazine with up to 4 tool positions for flexible production.
| Specification | DRILLTEQ V-200 |
|---|---|
| Workpiece length [mm] | 200 – 2,500 (optionally 3,050) |
| Workpiece width [mm] | 70 – 850 |
| Workpiece thickness [mm] | 12 – 60 |
| Total machine weight [kg] | approx. 1,580 |
