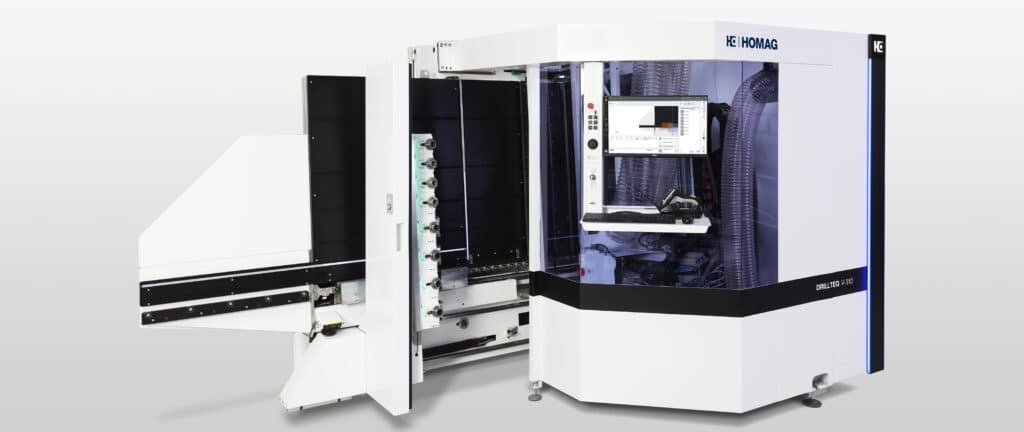

DRILLTEQ V-310
Maximum cabinet processing in an 11 m² footprint

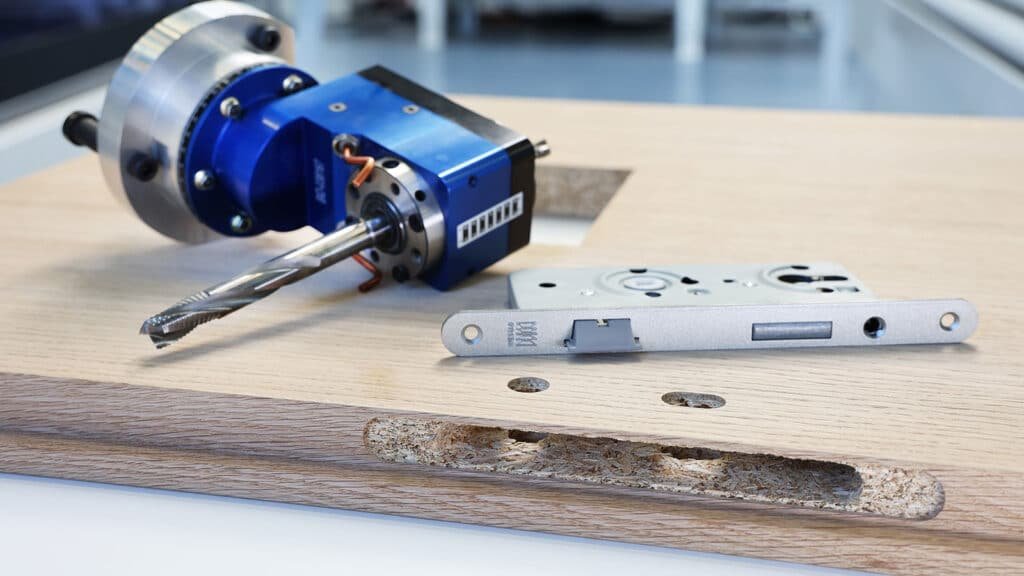

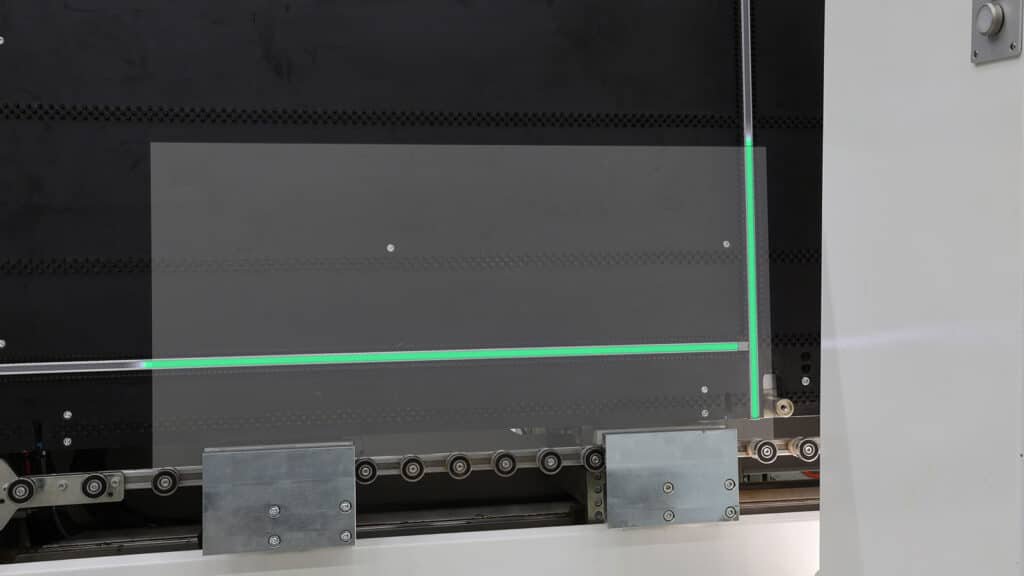

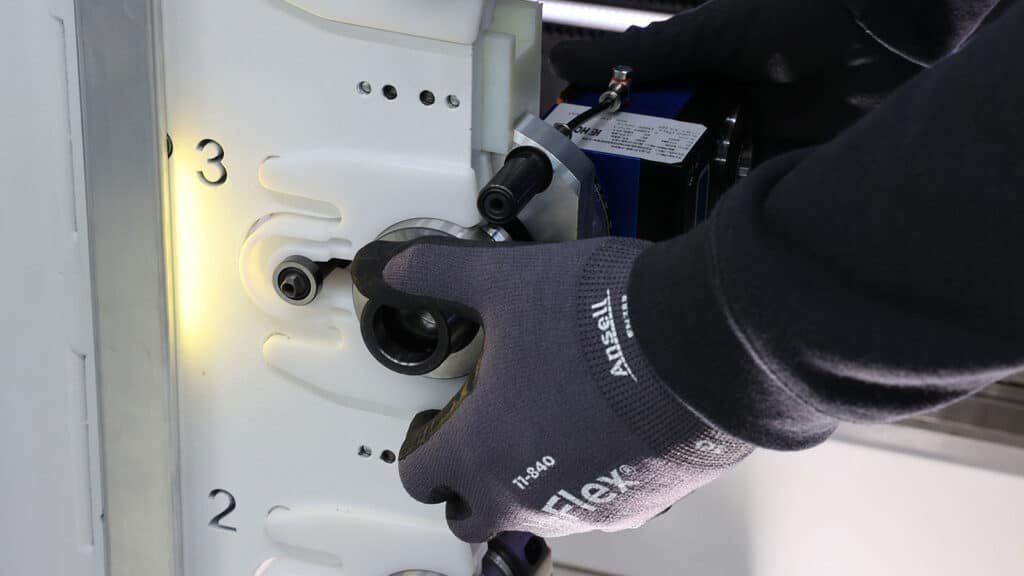

The DRILLTEQ V-310 packs maximum cabinet-processing capability into roughly 11 m² of floor space — more drilling, more grooving and more trimming than any other machine in its class. It handles doors and every type of furniture connector. intelliGuide LED operator assistance optimizes workpiece handling and tool changes, while a swiveling control unit and height-adjustable monitor make operation ergonomic.
Features
- Extensive equipment options including up to 45 drilling spindles and 2 grooving saws.
- Vacuum-free clamping system eliminates setup steps for more energy-efficient processing.

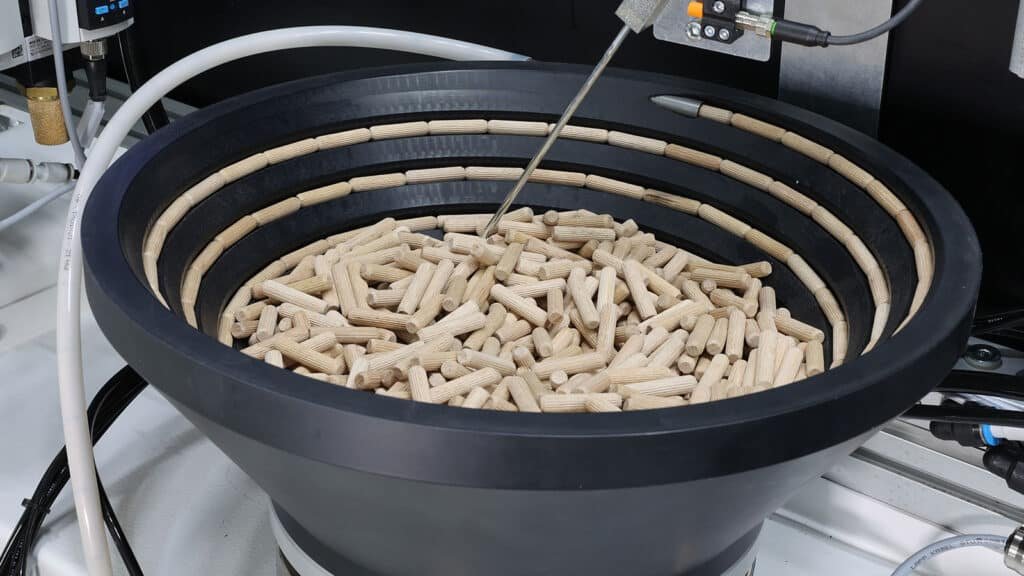

- Optional doweling unit and C-axis with unit interface; 5° gravity-based tilting eases workpiece handling.
- safeScan safety concept uses an invisible scanner check at machine infeed and outfeed for safe man-machine interaction.
- Plausibility check and workpiece measuring to safeguard the process; barcode scanner for quick program access.
| Specification | DRILLTEQ V-310 |
|---|---|
| Workpiece length [mm] | 200 – 3,050 |
| Workpiece width [mm] | 50 – 1,250 |
| Workpiece thickness [mm] | 8 – 80 |
| Total machine weight [kg] | approx. 3,600 |
| Installation dimensions L × W × H [mm] | 5,300 × 2,260 × 2,160 |
