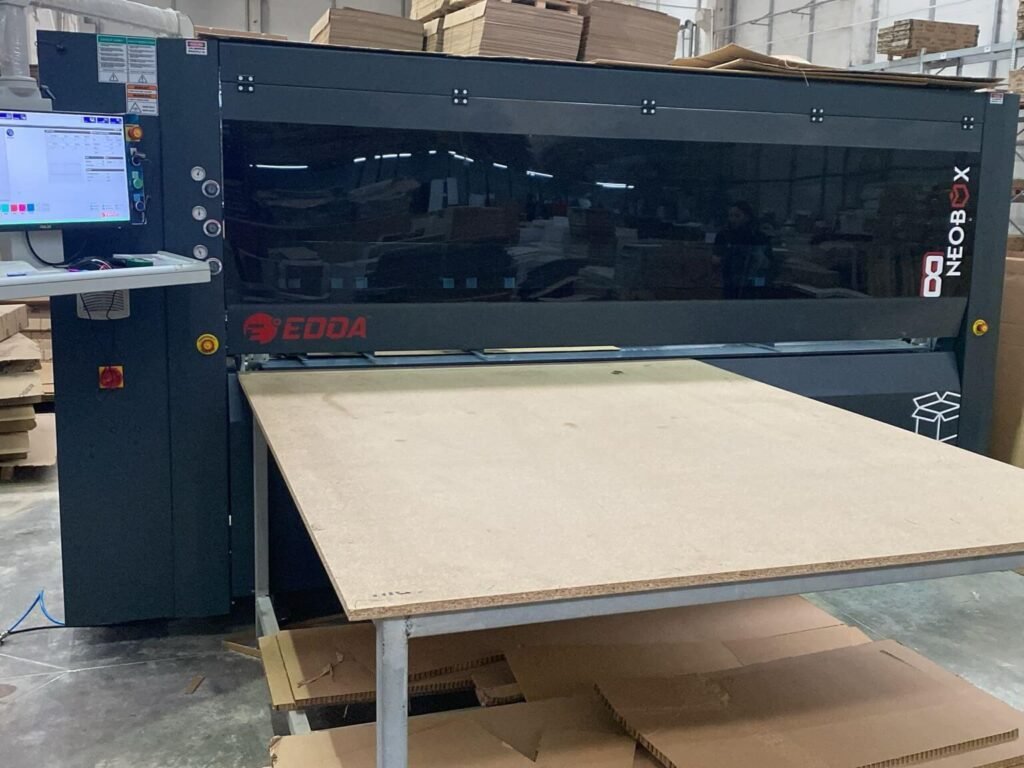

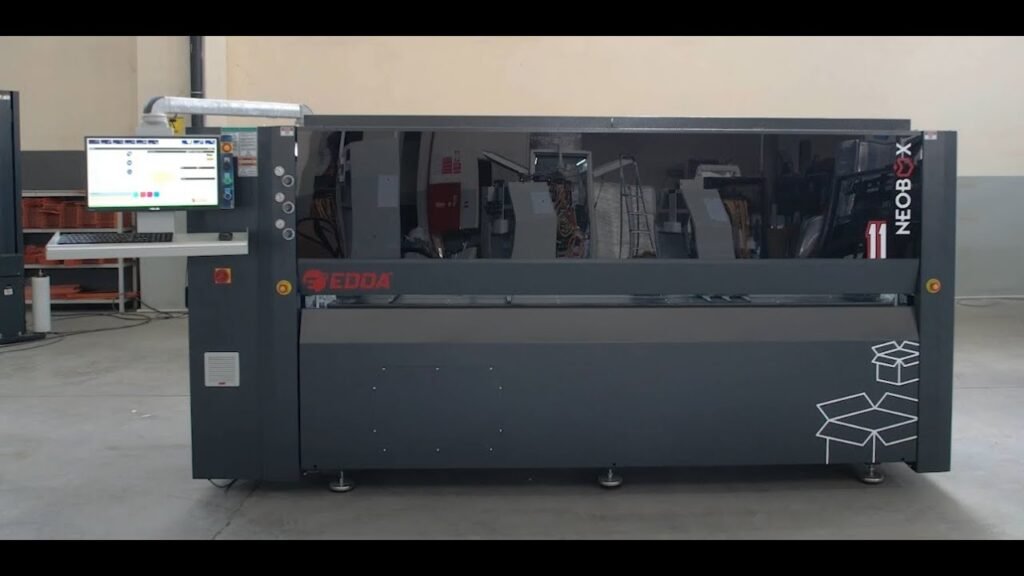

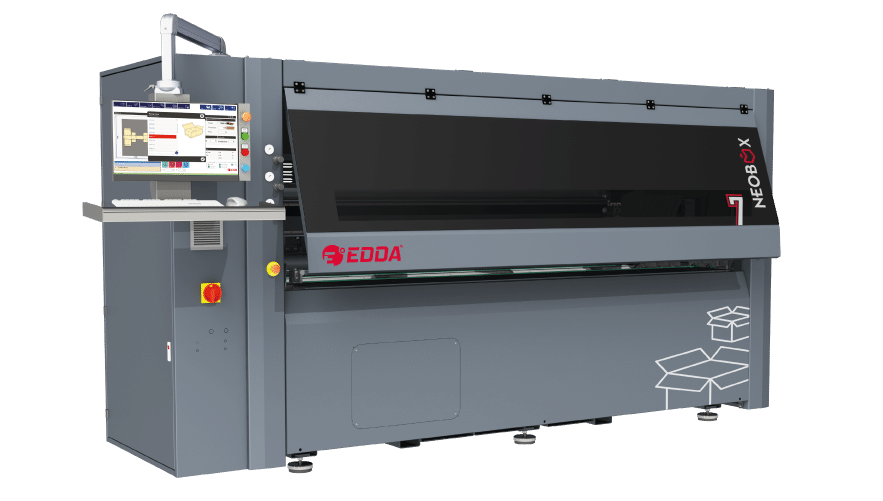

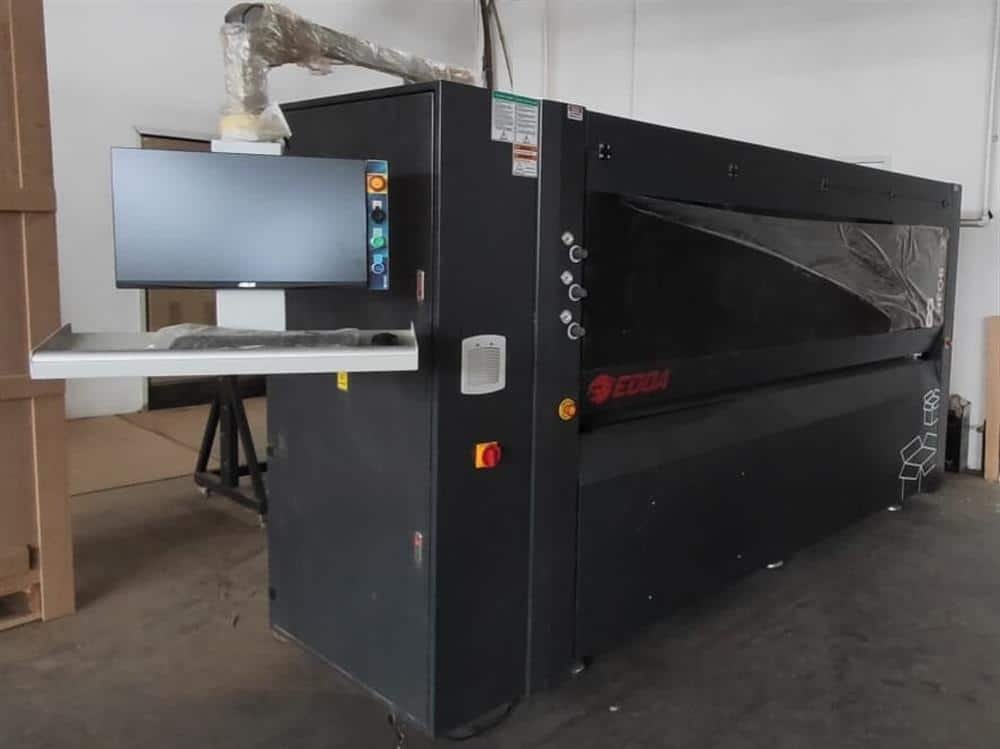

NEOBOX
CNC-controlled cardboard cutting and creasing for on-demand right-sized boxes
The NEOBOX is a CNC cardboard processing center that cuts and creases corrugated cardboard to produce custom-sized boxes on demand. With an independent axle tool carrier, 2,500 mm working width, more than 50 pre-defined box templates, and a custom box designing software, it lets packaging operations produce right-sized boxes for any product — eliminating the need to keep inventory of multiple standard box sizes. Runs on standard 220 V monophase power.
Features
- Cuts and creases corrugated cardboard up to 2,500 mm wide and 2–7 mm thick.
- Library of 50+ pre-defined box templates plus integrated custom box designing software.
- Independent axle tool carriage — 1 transversal station and 7 longitudinal stations (up to 16 optional).
- Fast axis speeds: 200 m/min transversal, 120 m/min longitudinal.
- EDDAWORKS® control software on a compact 2.5 kW 220 V monophase setup.
| Machine General | |
| Tool Positioning System | Independent Axle Driven Tool Carrying |
| Max. Cardboard Width | 2,500 mm |
| Transversal Axis Speed | 200 m/min |
| Longitudinal Axis Speed | 120 m/min |
| Transversal Stations | 1 |
| Longitudinal Stations | 7 standard (up to 16 optional) |
| Min. Distance of Tools | 20 mm |
| Min. Cardboard Length | 350 mm |
| Suitable Cardboard Thickness | 2 – 7 mm |
| Software & Tooling | |
| Pre-defined Box Types | More than 50 pre-defined boxes |
| New Box Designing Software | Installed |
| Cutting Tool Specifications | Ø 76 × 22 × 2.00 mm High Speed Steel |
| Software | EDDAWORKS® |
| Operating Conditions | |
| Operating Temperature | 10 °C (50 °F) – 40 °C (104 °F) |
| Electric Supply | 220 V — 50/60 Hz — Monophase |
| Total Power | 2.5 kW |
| Total Weight | 1,800 kg |
