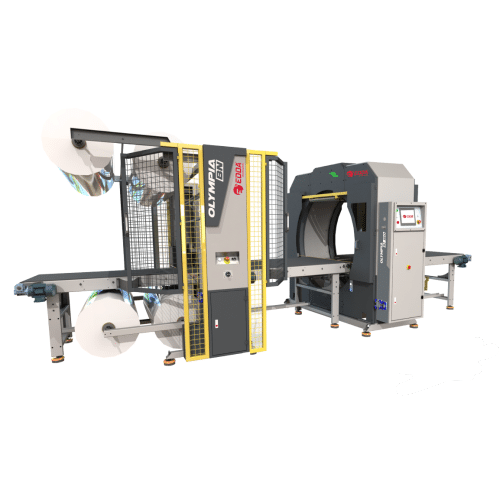

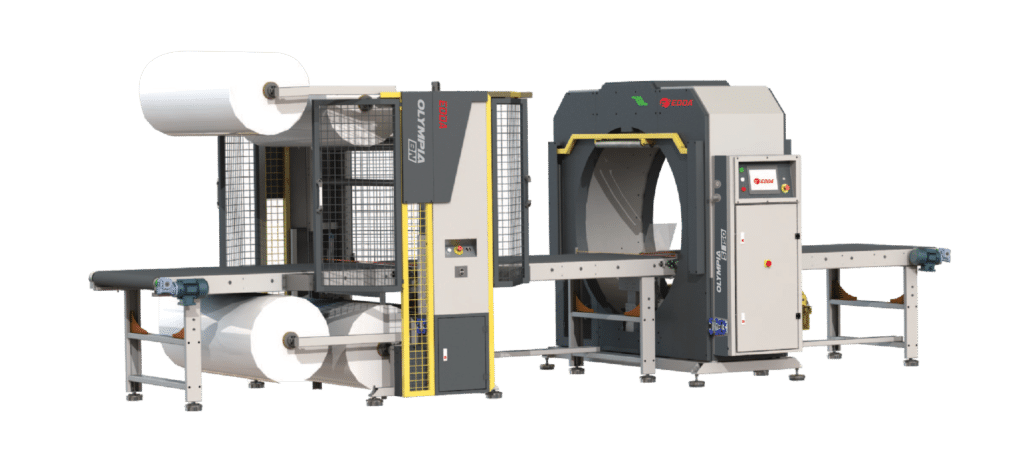

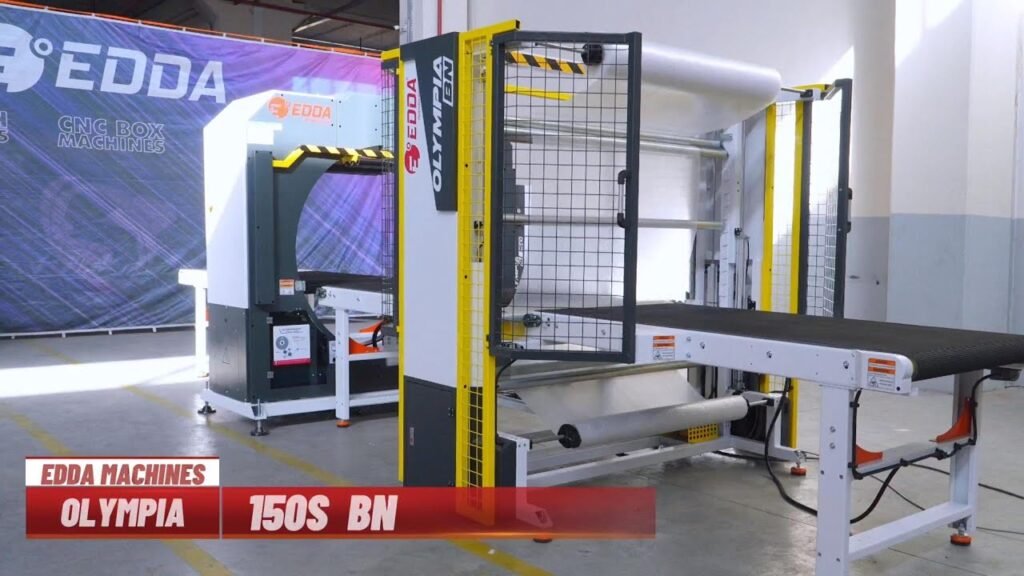

OLYMPIA 150 S BN
Heavy-duty total closing wrap with 250 mm stretch film and 1,350 mm air bubble overwrap

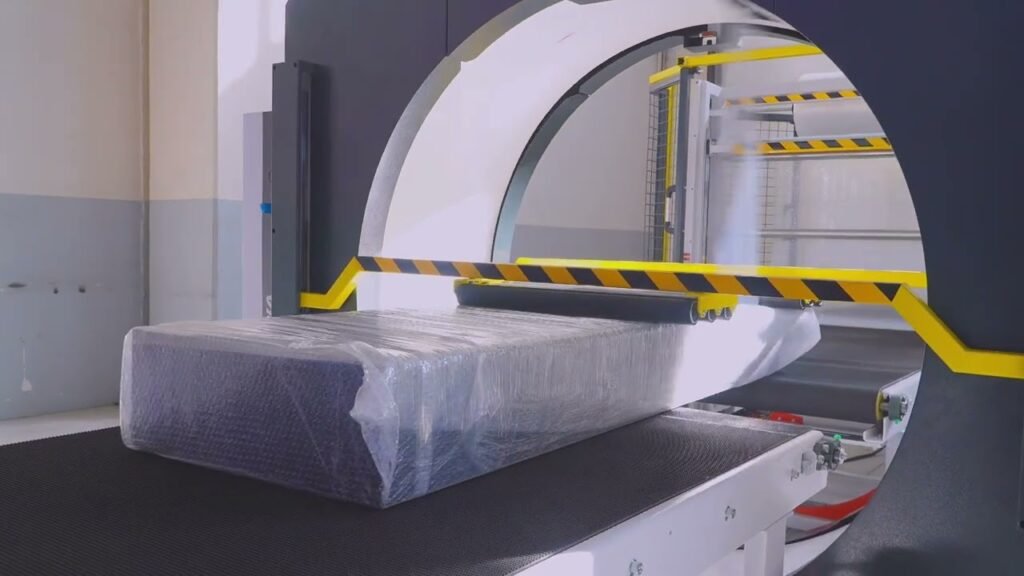

The OLYMPIA 150 S BN handles larger and heavier products with a 250 mm-wide stretch film unit, lower 15–60 rpm ring rotation for thicker materials, and a 1,350 mm air bubble film unit for full enclosure. Built for furniture panels, mattresses, profile bundles, and similar wide-format goods with a minimum footprint of 200 × 18 × 700 mm and unlimited maximum length.
Features
- Stretch film width up to 250 mm delivers wider wrap coverage on larger products.
- 1,350 mm air bubble film unit accommodates wide products like furniture panels and mattresses.
- 5.2 kW total power with 2.2 kW main drive motor handles heavier wrap loads.
- Conveyor supports 100 kg per linear meter at speeds up to 10 m/min.
- Suitable for PE, PE air bubble, and PVC bubble film materials.
| Product to Wrap Sizes | |
| Max. Length | Unlimited |
| Min. Dimensions (W × H × L) | 200 × 18 × 700 mm |
| Conveyor Belt | |
| Useful Length | 1,924 mm |
| Total Length | 2,000 mm |
| Working Height | 900 mm |
| Electric Motor Power | 0.55 kW |
| Max. Conveyor Speed | 10 m/min |
| Max. Load Capacity | 100 kg/m |
| Stretch Film | |
| Max. Width | 250 mm |
| Max. Diameter | Ø 230 mm |
| Reel Core Diameter | Ø 76 mm |
| Recommended Thickness | 23, 30, 35 micron |
| Machine General | |
| Main Motor Power | 2.2 kW |
| Max. Ring Rotation Speed | 60 rpm |
| Min. Ring Rotation Speed | 15 rpm |
| Electric Supply | 380 V — 50/60 Hz — 3P+1N+1G |
| Total Power | 5.2 kW |
| Standard Machine Dimensions (W × H × L) | 2,395 × 2,200 × 6,675 mm |
| Total Weight | 1,850 kg |
| Air Bubble Film Unit | |
| Max. Film Width | 1,350 mm |
| Max. Film Reel Diameter | Ø 600 mm |
| Reel Core Diameter | Ø 20 mm – Ø 76 mm |
| Cutting & Welding System Operating Temperature | 50 – 150 °C |
| Suitable Film Materials | PE Film, PE Air Bubble Film, PVC Film |
