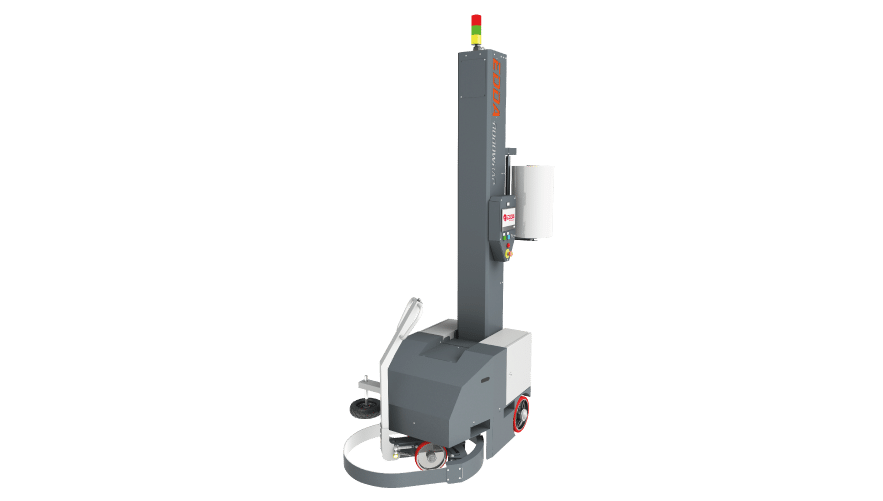

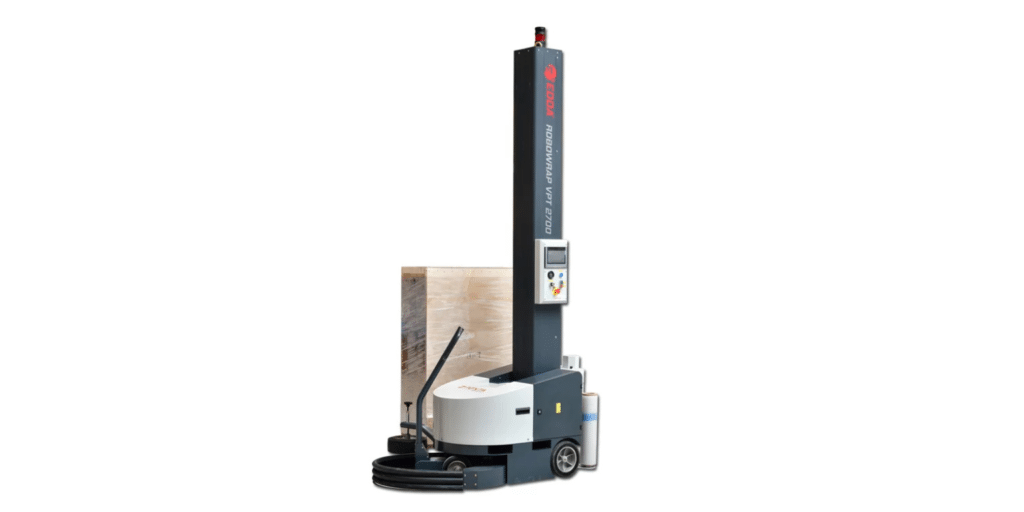

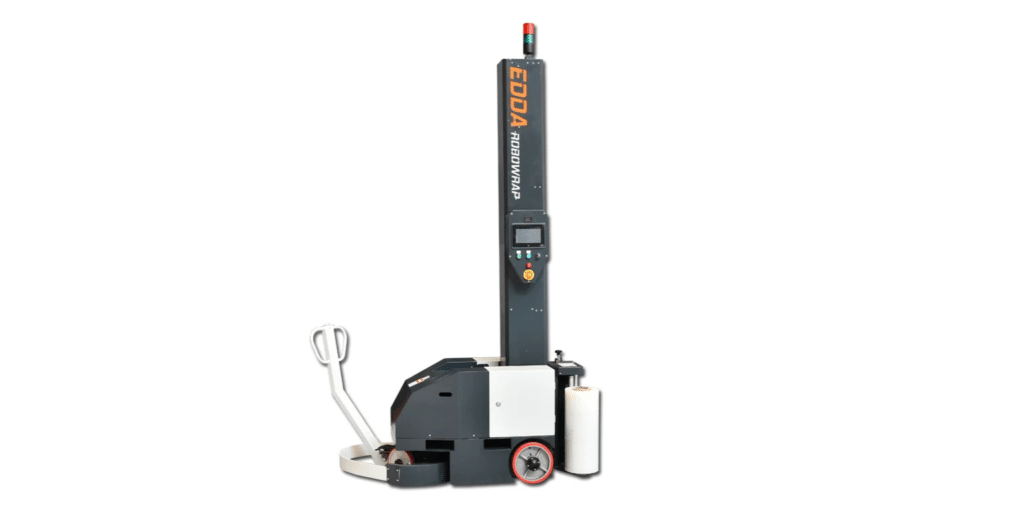

ROBOWRAP 2700 VPT
Self-propelled vertical stretch wrapper for pallets and tall loads up to 2.7 m high
The ROBOWRAP 2700 VPT wraps pallets and tall loads vertically using a self-propelled, traveling film carriage that needs no fixed installation — it operates on any flat warehouse floor. A motorized pre-stretching system tensions the film up to 250%, reducing film consumption while increasing wrap strength. Handles loads up to 2,700 mm tall with unlimited footprint and a minimum base of 700 × 700 mm.
Features
- Self-propelled carriage wraps pallets on any flat floor with no fixed installation required.
- Motorized film pre-stretching tensions film up to 250%, reducing film cost per pallet.
- Wraps loads up to 2,700 mm in height with unlimited base footprint.
- 500 mm-wide stretch film with Ø 250 mm maximum roll diameter and 16 kg max roll weight.
- 24 V DC drive system with 220 V monophase battery charger — simple electrical setup.
| Machine General | |
| Min. Floor Dimensions (L × W × H) | 1,630 × 1,230 × 2,700 mm |
| Control & Drive Voltage | 24 V DC |
| Charger Electric Supply | 220 V — 50/60 Hz — Monophase |
| Film Tensioning System | Motorized Pre-Stretching |
| Film Tensioning Rate | 0 – 250% |
| Speed Adjustment | Available |
| Film Roll | |
| Film Width | 500 mm |
| Max. Roll Diameter | Ø 250 mm |
| Max. Roll Weight | 16 kg |
| Roll Inner Diameter | Ø 76 mm |
| Packaging Dimensions | |
| Max. Height | 2,700 mm |
| Max. Dimensions (W × D) | Unlimited |
| Min. Dimensions (W × D) | 700 × 700 mm |
